Celadon Inc. |
|
|
RCV-5000 IR to RS-232 Output Table |
Device: KOTI-816NR Video Multiplexer |
|
|
|

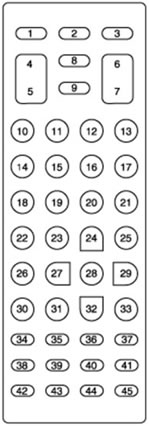

Infrared Remote Control: Celadon, SC-45 |
Infrared Code Format: NEC - Device ID: FF00 |
Infrared Receiver: Celadon RCV-5000 Infrared to RS-232 Receiver |
RCV-5000 Data File: koti3_r.hex |
|
Data - 1200 baud, 8, O, 1, ASCII OUTPUT |
Switch Pins 2 & 3 |
|
|
|
|
|
|
|
|
|
|
|
KOTI Command |
SC-45 |
ASCII Output String |
Camera 1 |
10 |
/01 |
Camera 2 |
11 |
/02 |
Camera 3 |
12 |
/03 |
Camera 4 |
13 |
/04 |
Camera 5 |
14 |
/05 |
Camera 6 |
15 |
/06 |
Camera 7 |
16 |
/07 |
Camera 8 |
17 |
/08 |
Camera 9 |
18 |
/09 |
Camera 10 |
19 |
/10 |
Camera 11 |
20 |
/11 |
Camera 12 |
21 |
/12 |
Camera 13 |
22 |
/13 |
Camera 14 |
23 |
/14 |
Camera 15 |
24 |
/15 |
Camera 16 |
25 |
/16 |
Quad |
26 |
/SF/01 |
9-Way |
27 |
/SF/05 |
16-Way |
28 |
/SF/08 |
Sequence |
29 |
/SQ |
Shift |
30 |
/SF |
|
|
|
|
|
|
|
|
|
|
|
|
